What causes voltage surges?

Voltage surges can be caused by lightning strikes, power outages, or equipment malfunctions.

What is the difference between Type 1, Type 2, and Type 3 surge protectors?

Type 1 protects the service entrance, Type 2 protects the distribution panel, and Type 3 protects individual devices.

How do I know which surge protector to choose?

Consider the voltage rating, surge current rating, and the specific application requirements.

Is grounding necessary for surge protection?

Yes, proper grounding is critical for the effectiveness of surge protection devices.

What standards should surge protectors comply with?

Surge protectors should comply with IEC 61643 and UL 1449 for safety.

What is the expected market growth for surge protection devices in the coming years?

The global surge protection devices market is projected to grow from USD 2.98 billion in 2025 to USD 3.95 billion by 2030, reflecting a compound annual growth rate (CAGR) of 5.8%. This growth is primarily driven by the increasing demand for protection of critical machinery and automation equipment in industrial settings.

What is the significance of the 10–25 kA nominal discharge current range?

The 10–25 kA nominal discharge current range is significant as it held the largest market share in 2024, particularly in commercial and industrial applications. This range offers a balanced combination of cost and performance, making it suitable for mid-range protection against moderate to high transient overvoltages.

How do Type 1 surge protection devices differ from Type 2 devices?

Type 1 surge protection devices are specifically designed to protect against lightning surges at service entrances and are expected to exceed USD 1 billion in market value by 2035. In contrast, Type 2 devices, which dominated the market in 2022 with over 30% of global revenue, are tailored for industrial and commercial applications to safeguard electrical equipment and distribution panels.

What role do surge protective devices play in reducing operational downtime?

Surge protective devices have been reported to reduce downtime and equipment failure in 79% of facilities. This is particularly crucial as 78% of equipment failures caused by power surges occur in equipment that has been in service for 5 years or less, highlighting the importance of proactive surge protection.

What are the best practices recommended by manufacturers for surge protection devices?

Manufacturers recommend several best practices for surge protection devices, including the integration of advanced thermal disconnects to prevent device failure during overvoltage conditions, and implementing IoT-enabled monitoring systems for real-time status reporting. Additionally, modular design architectures are favored for their flexibility in adapting to evolving facility requirements.

Surge Protection Fundamentals — Knowledge Base

This article covers the fundamentals of surge protection, including types of surge protectors, installation considerations, and compliance with relevant standards.

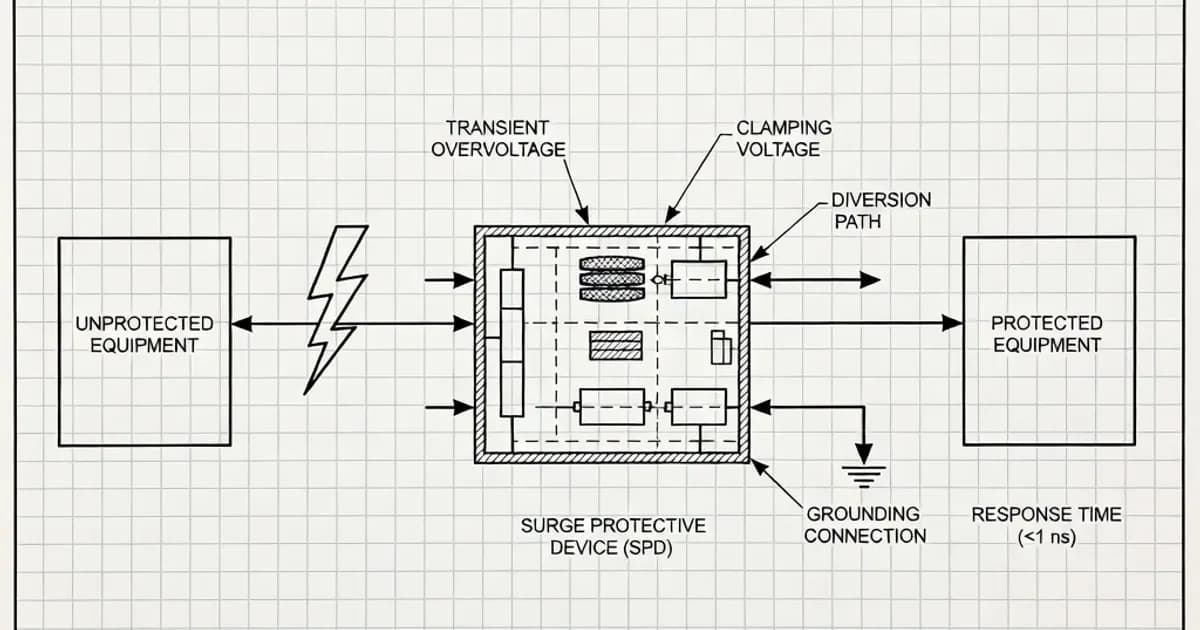

What is Surge Protection?

Surge protection involves using devices designed to protect electrical equipment from voltage spikes. These spikes can occur from lightning strikes, power outages, or switching operations. The global surge protection devices market was valued at USD 2.98 billion in 2025 and is projected to reach USD 3.95 billion by 2030, growing at a CAGR of 5.8%.

Types of Surge Protectors

Surge protectors can be categorized into several types:

Type 1: Installed at the service entrance, protecting the entire electrical system. Type 1 devices are specifically designed to protect against lightning surges and are expected to exceed USD 1 billion in market value by 2035.
Type 2: Installed at the distribution panel to protect downstream circuits. Type 2 SPDs dominated the market in 2022, capturing more than 30% of global revenue.
Type 3: Point-of-use devices installed at individual outlets. These devices are essential for protecting sensitive electronic equipment from localized surges.

Surge Protection Ratings

Key ratings to consider when selecting surge protectors include:

Rating	Description
Voltage Rating	Maximum voltage the device can handle, typically specified to meet IEC 61643 standards.
Surge Current Rating	Maximum current the device can absorb without failure, with the 10–25 kA nominal discharge current range being the most common for mid-range protection.

Installation Considerations

When installing surge protection devices, consider the following:

Ensure proper grounding to maximize effectiveness, as per NEC Article 285 requirements.
Install surge protectors as close to the equipment as possible to reduce the length of cable runs, which can introduce additional voltage spikes.
Follow manufacturer's installation guidelines, which may include using DIN rail-mounted configurations for easier integration into existing electrical panels.

Compliance with Standards

Surge protection devices should comply with IEC 61643 and UL 1449 standards to ensure safety and reliability. Compliance with these standards is a key driver of surge protection device adoption in industries, as they provide guidelines for performance and testing.

Conclusion

Understanding surge protection fundamentals is essential for safeguarding electrical systems. By implementing appropriate surge protection measures, you can significantly reduce the risk of equipment damage. In fact, 79% of facilities report that surge protective devices have reduced downtime and equipment failure.

References & Citations

IEC Standards (International Electrotechnical Commission) — Primary source for IEC 61643 series standards covering surge protective device classification, performance requirements, and testing procedures for low-voltage systems.
IEEE Standards Association — Authoritative source for IEEE C62.41, C62.45, and other surge protection characterization and testing standards used in North American electrical engineering practice.
National Electrical Code (NEC) - National Fire Protection Association (NFPA) — Official source for NEC Article 285 requirements governing SPD installation, coordination, and grounding in electrical systems.
UL Product iQ (Underwriters Laboratories) — Database and documentation for UL 1449 standard requirements and certified surge protective device products with performance ratings and safety certifications.
Electrical Safety Foundation International (ESFI) — Industry resource providing surge protective device surveys, electrical safety guidelines, and practical implementation data for facility managers and engineers.
